Filament Winding

Tube production methods:

Filament Winding: The profiles are designed to load situation, high quality, high fiber volume, made to application, big items, thick walled items, small series (also one piece production and prototyping). It is possible to make tapered profiles. The Filament Winding production process is a computer controlled process.

Pull Winding: design to load, high quality, made to application, not big items, big series, relatively low price, Computer controlled process.

Pull Trusion: fibers only in length direction. Computer controlled process.

Roll wrapped: Smaller series, limited length per item, good for profiles with different wall thickness over the length, relatively much handwork.

Machining, bonding, grinding, special made.

Machines with 4 mandrels (max):

6 m / max Ø200 mm
12,7 m / max Ø1700 mm
Ø min 10 mm
Ø Max 2500 mm bigger on request

Filament winding process principle

Filament winding process principle

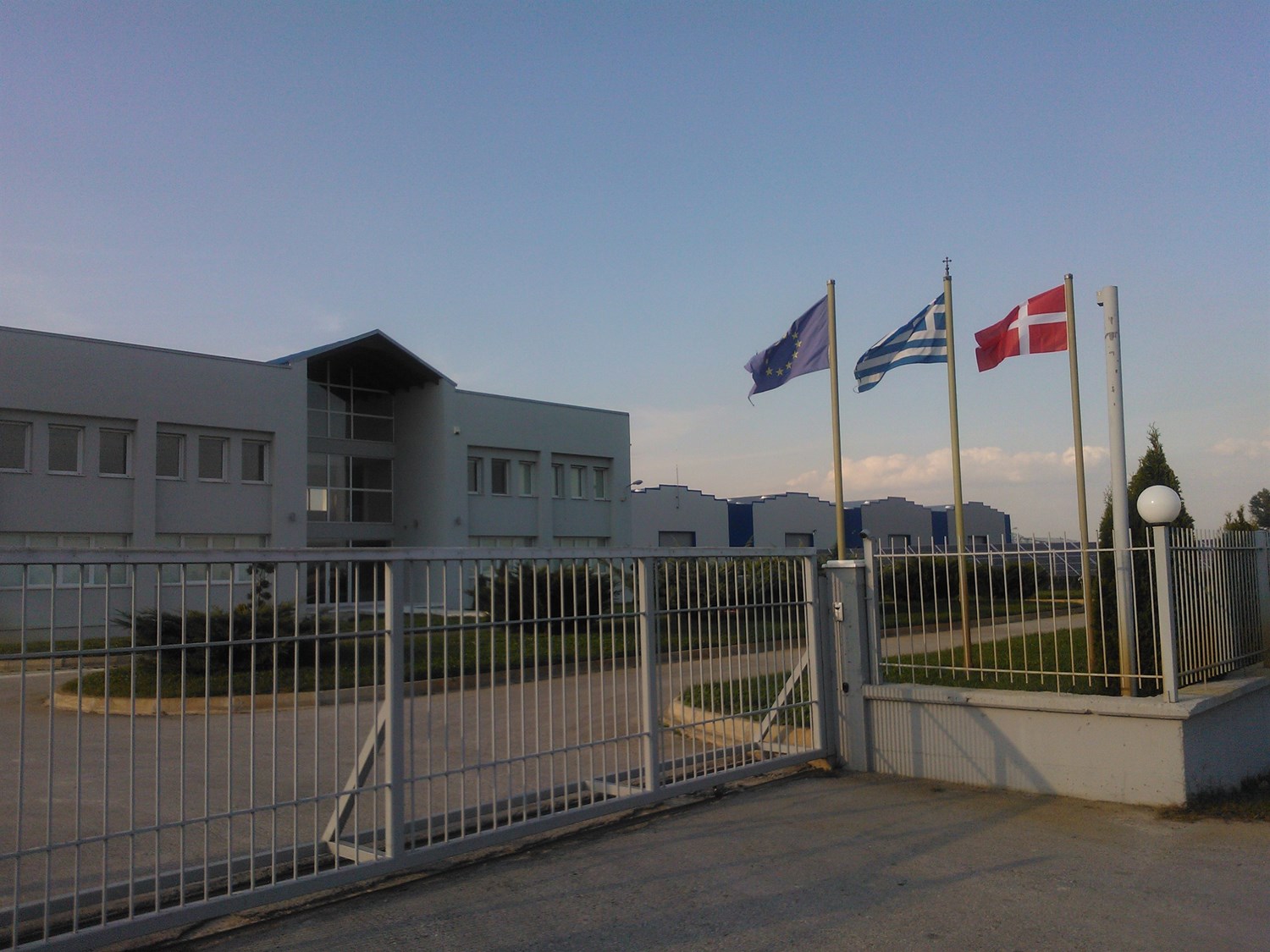

our Filament Winding Plant in Greece

our Filament Winding Plant in Greece

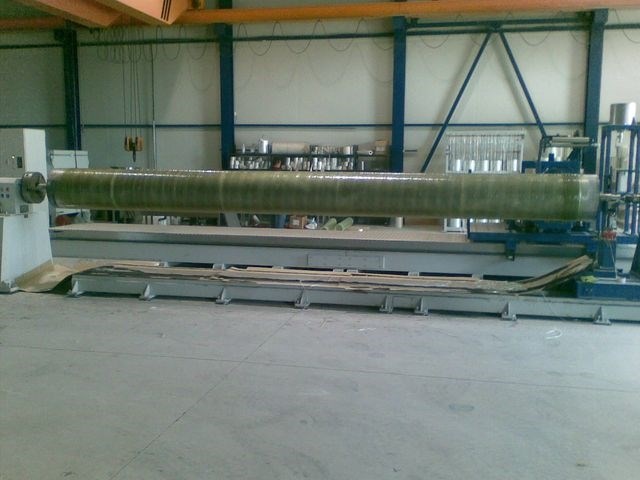

polyester/vinyester power plant glass fiber machine

polyester/vinyester power plant glass fiber machine

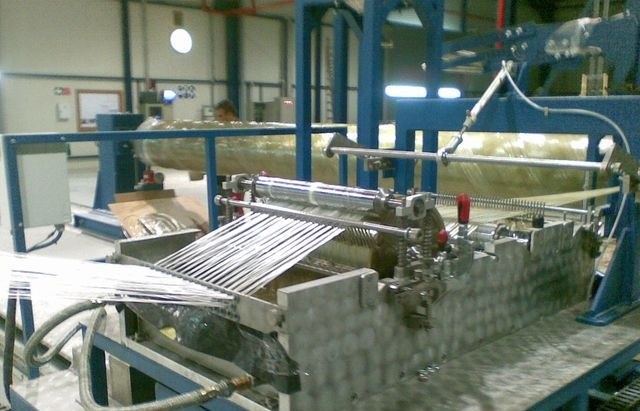

resin bath glass fiber filament winding machine

resin bath glass fiber filament winding machine

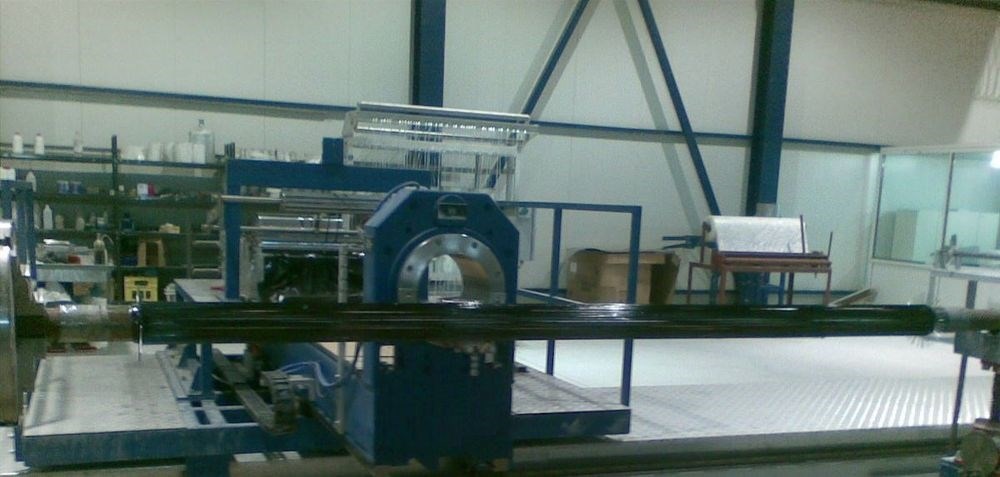

carbon filament winding machine length 13m

carbon filament winding machine length 13m

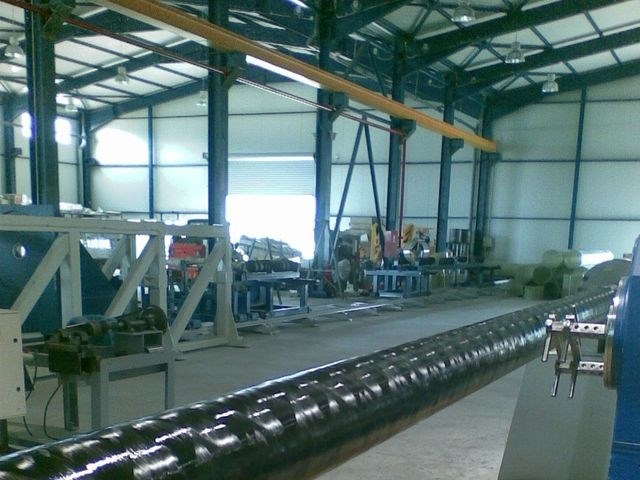

carbon winding 13m long machine carbon

carbon winding 13m long machine carbon

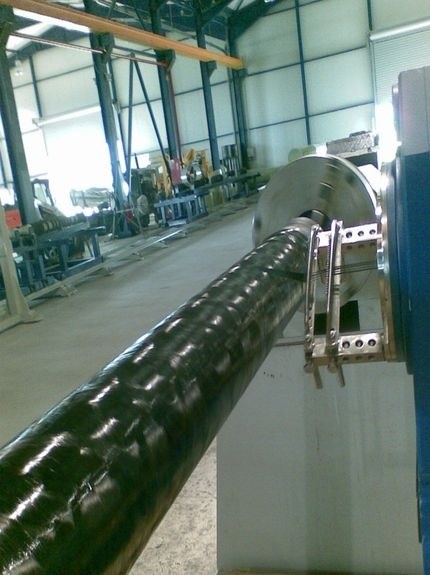

carbon winding machine (close up) angels 0-90 degrees

carbon winding machine (close up) angels 0-90 degrees

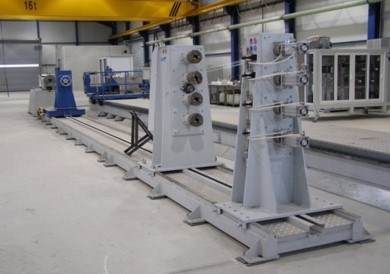

4 spindle filament winding machine

4 spindle filament winding machine

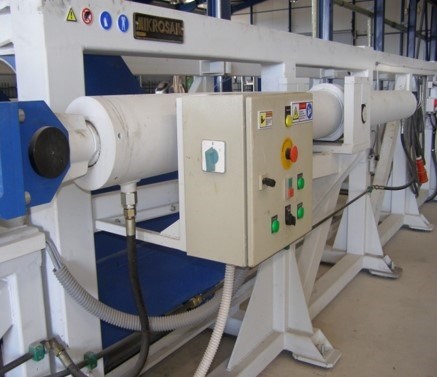

Hydraulic extractor unit

Hydraulic extractor unit
